Gantt renders scheduled work on a timeline. Use it for delivery plans, implementation roadmaps, release windows, and any task list that needs dates, progress, grouping, and optional parent-child expansion.

Python Contract

sdk.ui.Gantt(
    id: str,
    *,
    items: list[dict[str, Any]] | None = None,
    mermaid: str = "",
    title: str = "",
    height: int = 360,
    start: str = "",
    end: str = "",
    scale: str = "1d",
)

height is normalized to at least 220. scale defaults to the daily scale (1d).

Supported Properties

Property Type Required Python YAML Desktop Web Notes
id str yes yes yes yes yes Stable component id
items list[object] no yes yes yes yes Structured Gantt rows
mermaid str no yes yes yes yes Mermaid gantt definition
title str no yes yes yes yes Optional heading above the timeline
height int no yes yes yes yes Minimum visible height
start str no yes yes yes yes Explicit timeline start date or datetime
end str no yes yes yes yes Explicit timeline end date or datetime
scale str no yes yes yes yes Timeline scale. Defaults to 1d
style str no yes yes yes yes Apply layout styling on the surrounding container when possible
show_if rule no yes yes yes yes Generic visibility contract
hide_if rule no yes yes yes yes Generic visibility contract
required_permissions list[str] no yes yes yes yes Generic visibility contract

Task Shape

Each items entry can provide:

  • id: stable task identifier
  • label: visible task label
  • name: accepted as a label alias
  • start: start date or datetime
  • end: end date or datetime
  • group: lane or section label shown with the task
  • status: task state used for bar styling
  • status_label: optional label shown inside the task bar; defaults to status
  • progress: completion percentage from 0 to 100
  • expanded: initial expanded state for parent tasks
  • subtasks: nested child tasks
  • children: accepted as an alias for subtasks

Parent tasks can omit start and end when those dates should be derived from their child tasks.

Timeline Scale

scale controls the timeline unit for every client. When omitted, the component uses the daily scale (1d) and keeps the historical date-only behavior.

Supported values:

  • 1d, 1h, 1m, 1s, 1ms
  • Multiples such as 7d, 6h, 15m, 5s, 100ms
  • Aliases: day, hour, minute, second, millisecond

When scale is daily, renderers normalize dates to midnight. With sub-daily scales, start and end can use ISO datetime values, for example 2026-04-01T09:30:00.000.

Authoring Modes

Gantt supports two input modes.

  • Structured mode with items
  • Mermaid mode with a gantt definition in mermaid

When items is present and non-empty, the structured task list is rendered. When items is omitted or empty, the component reads the Mermaid definition.

Structured Example

timeline = sdk.ui.Gantt(
    "module_delivery_plan",
    title="Module delivery plan",
    items=[
        {
            "id": "plan",
            "label": "Planning and alignment",
            "group": "foundation",
            "start": "2026-04-01",
            "end": "2026-04-05",
            "status": "done",
            "progress": 100,
            "expanded": True,
            "subtasks": [
                {
                    "id": "scope",
                    "label": "Scope definition",
                    "group": "foundation",
                    "start": "2026-04-01",
                    "end": "2026-04-02",
                    "status": "done",
                    "progress": 100,
                },
                {
                    "id": "dependencies",
                    "label": "Dependency mapping",
                    "group": "foundation",
                    "start": "2026-04-03",
                    "end": "2026-04-05",
                    "status": "done",
                    "progress": 100,
                },
            ],
        },
        {
            "id": "api",
            "label": "Backend contract",
            "group": "delivery",
            "start": "2026-04-06",
            "end": "2026-04-11",
            "status": "done",
            "progress": 100,
        },
        {
            "id": "desktop",
            "label": "Desktop renderer",
            "group": "delivery",
            "start": "2026-04-09",
            "end": "2026-04-16",
            "status": "active",
            "progress": 65,
        },
        {
            "id": "web",
            "label": "Web renderer",
            "group": "delivery",
            "start": "2026-04-10",
            "end": "2026-04-18",
            "status": "active",
            "progress": 45,
        },
        {
            "id": "docs",
            "label": "Documentation and examples",
            "group": "enablement",
            "start": "2026-04-17",
            "end": "2026-04-22",
            "status": "planned",
            "progress": 0,
        },
        {
            "id": "launch",
            "label": "Production release",
            "group": "release",
            "start": "2026-04-23",
            "end": "2026-04-25",
            "status": "risk",
            "progress": 10,
        },
    ],
    start="2026-04-01",
    end="2026-04-25",
    scale="1d",
    height=480,
)

Desktop rendering:

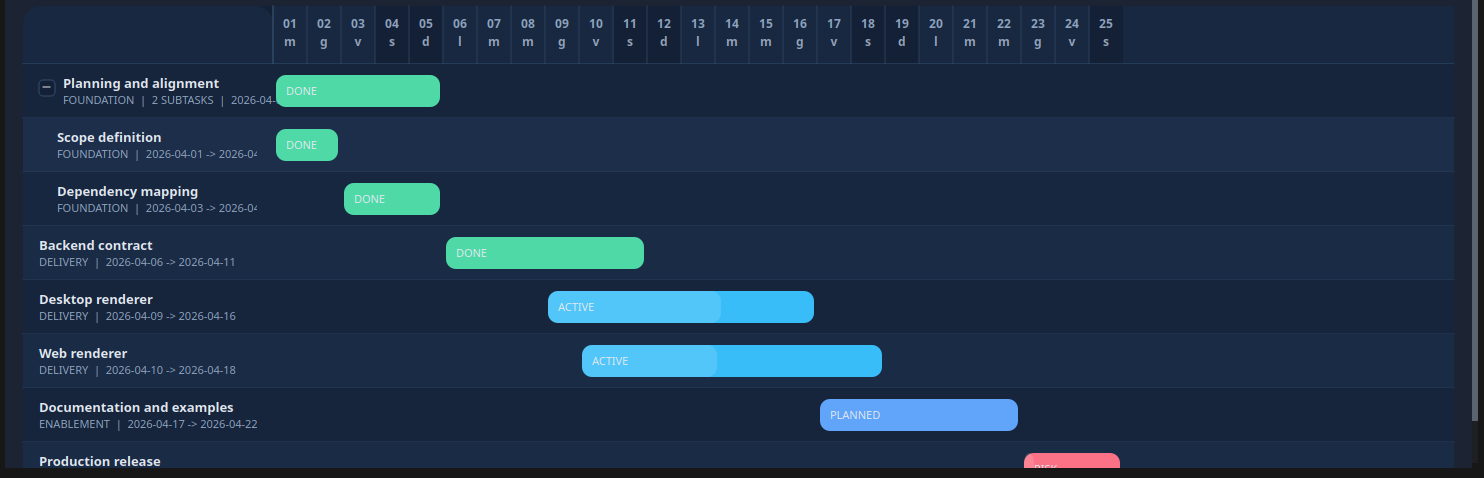

Gantt on desktop

Web rendering:

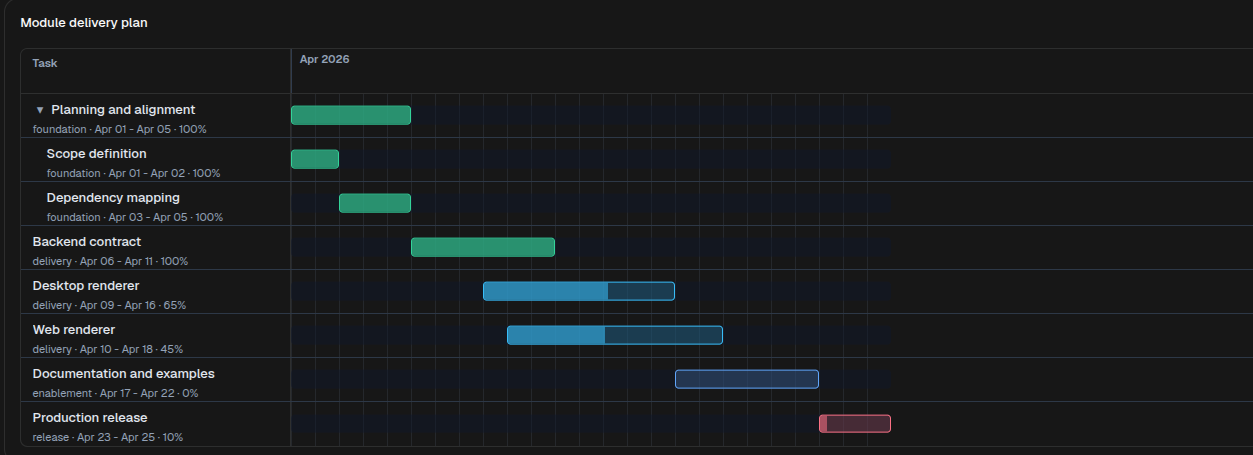

Gantt on web

Mermaid Example

timeline = sdk.ui.Gantt(
    "delivery_rollout_mermaid",
    mermaid=\"\"\"
gantt
    title Delivery rollout
    dateFormat YYYY-MM-DD
    section Foundation
    Planning and alignment :done, plan, 2026-04-01, 5d
    section Delivery
    Backend contract       :done, api, after plan, 6d
    Desktop renderer       :active, desktop, after api, 8d
    Web renderer           :active, web, 2026-04-10, 9d
    section Release
    Production release     :crit, launch, after web, 3d
\"\"\",
    height=420,
)

Binding And Runtime Updates

items, title, start, end, and scale can be bound to the page store or to the surface data model. Direct runtime updates should target the same properties with propertyUpdate.

from democrai.sdk.ui import bound

timeline = sdk.ui.Gantt("components_test_gantt_store", height=320)
timeline.set_property(
    "title",
    bound.store("/components_test/gantt/title", scope="page", default="Delivery plan"),
)
timeline.set_property(
    "items",
    bound.store("/components_test/gantt/items", scope="page", default=[]),
)
timeline.set_property(
    "start",
    bound.store("/components_test/gantt/start", scope="page", default="2026-04-01"),
)
timeline.set_property(
    "end",
    bound.store("/components_test/gantt/end", scope="page", default="2026-04-16"),
)
timeline.set_property(
    "scale",
    bound.store("/components_test/gantt/scale", scope="page", default="1d"),
)

data_timeline = sdk.ui.Gantt("components_test_gantt_data", height=320)
data_timeline.set_property(
    "items",
    bound.data("/components_test/gantt_model/items", default=[]),
)

live_timeline = sdk.ui.Gantt(
    "components_test_gantt_live",
    title="Delivery plan",
    items=[],
    height=320,
).allow("title.set", "items.set", "start.set", "end.set")

Visibility And Permissions

show_if and hide_if are evaluated at the first render and when their bound values change. Visibility rules use mode: "AND" by default; declare mode: "OR" when any condition can make the rule pass. required_permissions gates the component on the current user permissions; super and admin roles bypass the permission list.

from democrai.sdk.ui import bound

timeline = sdk.ui.Gantt(
    "components_test_gantt_show_if",
    title="show_if visible",
    items=[],
    height=300,
).set_show_if({
    "mode": "AND",
    "conditions": [{
        "left": bound.store(
            "/components_test/visibility/gantt_show",
            scope="page",
            default=True,
        ),
        "op": "==",
        "right": True,
    }]
})

hidden_timeline = sdk.ui.Gantt(
    "components_test_gantt_hide_if",
    title="hide_if not hidden",
    items=[],
    height=300,
).set_hide_if({
    "mode": "AND",
    "conditions": [{
        "left": bound.store(
            "/components_test/visibility/gantt_hide",
            scope="page",
            default=False,
        ),
        "op": "==",
        "right": True,
    }]
})

permission_timeline = sdk.ui.Gantt(
    "components_test_gantt_required_permissions",
    title="required_permissions gate",
    items=[],
    height=300,
).set_required_permissions(["components.diagram.visibility"])

Renderer Behavior

Desktop:

  • Expands and collapses parent rows in place.
  • Uses explicit start and end when provided, otherwise derives the visible range from task dates.
  • Uses scale when provided, otherwise defaults to 1d.
  • Accepts subtasks and children for nested rows.
  • Accepts label and name for task labels.
  • Uses status to derive colors and also accepts an explicit task color.

Web:

  • Expands and collapses parent rows in place.
  • Uses explicit start and end when provided, otherwise derives the visible range from task dates.
  • Uses scale when provided, otherwise defaults to 1d.
  • Accepts subtasks and children for nested rows.
  • Accepts label and name for task labels.
  • Styles bars from the status palette.

Usage Guidance

  • Use structured items when the module already owns tasks as data.
  • Use Mermaid when the timeline is easier to maintain as a text definition.
  • Keep task ids stable when Mermaid tasks use after <task_id> dependencies.
  • Use parent rows with expanded: true when the first render should expose subtasks immediately.
  • Set start and end when multiple timelines must stay visually aligned across cards or surfaces.
