CodeDiff

Previous Next

<- Back to Complex Components

Purpose

CodeDiff renders a structured diff as a review table with hunk headers, added lines, removed lines, context lines, optional old/new line numbers, file metadata, and revision labels.

Use it when a module needs to show a prepared diff payload. The component does not compute text diffs from raw files; it renders the hunks supplied by the module.

Constructor

CodeDiff(
    id: str,
    *,
    file_path: str = "",
    hunks: list[dict] | None = None,
    title: str = "",
    old_revision: str = "",
    new_revision: str = "",
    show_line_numbers: bool = True,
)

Properties

Python argument Payload/YAML property Type Default Description
title title str "" Optional title displayed above the diff.
file_path filePath str "" File label displayed in the diff header.
hunks hunks list[dict] [] Diff hunks rendered in order.
old_revision oldRevision str "" Left revision label.
new_revision newRevision str "" Right revision label.
show_line_numbers showLineNumbers bool True Shows or hides the old/new line-number columns.

For direct property updates and YAML definitions, use the payload property names.

Hunk Shape

Field Type Description
old_start / oldStart int Starting line on the old side.
new_start / newStart int Starting line on the new side.
header str Hunk header. When omitted, the renderer derives one from the start lines.
lines list[dict] Line entries rendered inside the hunk.

Line entries use type, text, and optional explicit line numbers:

Field Type Description
type str context, add, or remove. Unknown values are rendered as context lines.
text str Line content without the diff prefix.
old_no / oldNo int Explicit old-side line number.
new_no / newNo int Explicit new-side line number.

Examples

from democrai.sdk.client import active_sdk as sdk
from democrai.sdk.ui import bound

hunks = [
    {
        "old_start": 18,
        "new_start": 18,
        "header": "@@ -18,7 +18,8 @@",
        "lines": [
            {"type": "context", "text": "def render_summary(order):"},
            {"type": "remove", "old_no": 19, "text": "    status = order.status"},
            {"type": "add", "new_no": 19, "text": "    status = normalize_status(order.status)"},
            {"type": "context", "text": "    total = format_total(order.total)"},
            {"type": "add", "new_no": 21, "text": "    audit(order.id, status)"},
            {"type": "context", "text": "    return status, total"},
        ],
    }
]

diff = sdk.ui.CodeDiff(
    "diff_static",
    title="Checkout validation",
    file_path="orders/service.py",
    old_revision="4f81a2c",
    new_revision="91c0d7e",
    show_line_numbers=True,
    hunks=hunks,
)
diff.set_show_if({
    "conditions": [
        {
            "left": bound.store("/components_test/codediff/show", scope="page", default=True),
            "op": "==",
            "right": True,
        }
    ]
})
diff.set_hide_if({
    "conditions": [
        {
            "left": bound.store("/components_test/codediff/hide", scope="page", default=False),
            "op": "==",
            "right": True,
        }
    ]
})
diff.set_required_permissions(["components.complex.view"])
diff.allow("title.set", "filePath.set", "hunks.set", "oldRevision.set", "newRevision.set", "showLineNumbers.set")

Binding and Updates

For direct property updates and YAML definitions, use the payload property names. Python can also assign bound values with set_property when the payload name differs from the constructor argument.

store_diff = sdk.ui.CodeDiff("diff_store")
store_diff.set_property("title", bound.store("/components_test/codediff/title", scope="page", default="Checkout validation"))
store_diff.set_property("filePath", bound.store("/components_test/codediff/filePath", scope="page", default="orders/service.py"))
store_diff.set_property("hunks", bound.store("/components_test/codediff/hunks", scope="page", default=hunks))
store_diff.set_property("oldRevision", bound.store("/components_test/codediff/oldRevision", scope="page", default="4f81a2c"))
store_diff.set_property("newRevision", bound.store("/components_test/codediff/newRevision", scope="page", default="91c0d7e"))
store_diff.set_property("showLineNumbers", bound.store("/components_test/codediff/showLineNumbers", scope="page", default=True))

data_diff = sdk.ui.CodeDiff("diff_data")
data_diff.set_property("title", bound.data("/components_test/codediff_model/title", default="Checkout validation"))
data_diff.set_property("filePath", bound.data("/components_test/codediff_model/filePath", default="orders/service.py"))
data_diff.set_property("hunks", bound.data("/components_test/codediff_model/hunks", default=hunks))
data_diff.set_property("oldRevision", bound.data("/components_test/codediff_model/oldRevision", default="4f81a2c"))
data_diff.set_property("newRevision", bound.data("/components_test/codediff_model/newRevision", default="91c0d7e"))
data_diff.set_property("showLineNumbers", bound.data("/components_test/codediff_model/showLineNumbers", default=True))

live_diff = sdk.ui.CodeDiff("diff_live", title="Checkout validation", file_path="orders/service.py", hunks=hunks)

Runtime updates must target the current surface:

surface_id = ctx["_surface_id"]

return sdk.effects.respond(
    sdk.effects.ui_messages([
        {
            "stateUpdate": {
                "scope": "page",
                "values": {
                    "/components_test/codediff/title": next_title,
                    "/components_test/codediff/filePath": next_file_path,
                    "/components_test/codediff/hunks": next_hunks,
                    "/components_test/codediff/oldRevision": next_old_revision,
                    "/components_test/codediff/newRevision": next_new_revision,
                    "/components_test/codediff/showLineNumbers": next_show_line_numbers,
                },
            }
        },
        sdk.ui.Builder.build_data_model_update_payload(
            surface_id=surface_id,
            data={
                "components_test": {
                    "codediff_model": {
                        "title": next_title,
                        "filePath": next_file_path,
                        "hunks": next_hunks,
                        "oldRevision": next_old_revision,
                        "newRevision": next_new_revision,
                        "showLineNumbers": next_show_line_numbers,
                    }
                }
            },
        ),
    ]),
    sdk.effects.ui_property_update("diff_live", "title", next_title, surface_id=surface_id),
    sdk.effects.ui_property_update("diff_live", "filePath", next_file_path, surface_id=surface_id),
    sdk.effects.ui_property_update("diff_live", "hunks", next_hunks, surface_id=surface_id),
    sdk.effects.ui_property_update("diff_live", "oldRevision", next_old_revision, surface_id=surface_id),
    sdk.effects.ui_property_update("diff_live", "newRevision", next_new_revision, surface_id=surface_id),
    sdk.effects.ui_property_update("diff_live", "showLineNumbers", next_show_line_numbers, surface_id=surface_id),
)

Screenshots

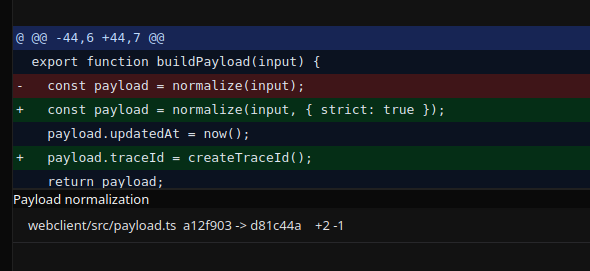

Desktop:

CodeDiff desktop

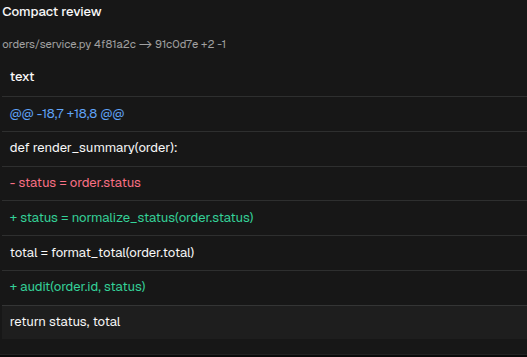

Web:

CodeDiff web
