Purpose

List renders a sequence of items from an explicit dataSource. Each item can use a built-in display template or a custom item_template component tree cloned for every row.

Use List for compact feeds, queues, task lists, selectable item collections, or card-like repeated content that does not need a fixed tabular schema. Use DataTable when rows need columns, sorting, filtering, pagination, or cell editing.

Constructor

List(
    id: str,
    data_source: dict,
    item_template: Component | None = None,
    on_item_click: dict | None = None,
    orientation: str = "vertical",
    selectable: bool = False,
    template: str = "custom",
    item_actions: list[dict] | None = None,
    selected_items_action: dict | None = None,
    selected_items_action_label: str = "Apply to selected",
)

Properties

Property Type Default Description
dataSource dict required Item source. Cross-client examples use inline and binding.
itemTemplate Component none Custom component tree rendered once per item.
template str custom Built-in item template: text, title_text, or custom.
orientation str vertical vertical stacks rows; horizontal wraps items horizontally where supported by layout.
selectable bool false Enables row checkboxes and selectedItemsAction.
onItemClick dict none Action spec emitted when a non-selecting row click is handled.
itemActions list[ActionDef] [] Per-item menu actions. Visibility rules can read $item.
selectedItemsAction dict none Batch action emitted for selected items.
selectedItemsActionLabel str Apply to selected Label used for the selected-items action button.

Python constructor arguments use snake_case. YAML definitions use the constructor keys such as data_source, item_template, on_item_click, item_actions, selected_items_action, and selected_items_action_label. Runtime updates target serialized property names such as dataSource, dataSource.data, itemActions, and selectable.

Action specs in onItemClick, itemActions, and selectedItemsAction must use fully qualified module action names, for example components.test_list_action_event. See Action Dispatch.

Action Confirmation

Use confirm inside the ActionSpec for onItemClick, item action payloads, or selectedItemsAction. Confirmation text should use translation keys.

list_component = sdk.ui.List(
    "list_confirm",
    data_source={
        "type": "inline",
        "data": [
            {
                "id": "list_alpha",
                "title": "Alpha item",
                "text": "Click the row or the menu action.",
                "selectable": False,
            },
            {
                "id": "list_beta",
                "title": "Beta item",
                "text": "Select rows and confirm the batch action.",
            },
        ],
    },
    template="title_text",
    selectable=True,
    on_item_click={
        "name": "components.list_confirm_action",
        "context": {"source": "python_list_click", "item_id": "$item.id"},
        "confirm": {
            "text": sdk.i18n.t("components.list.confirm.click_prompt"),
            "confirm_text": sdk.i18n.t("components.list.confirm.accept"),
            "cancel_text": sdk.i18n.t("components.list.confirm.cancel"),
        },
    },
    item_actions=[
        {
            "label": sdk.i18n.t("components.list.confirm.item_action"),
            "action": {
                "name": "components.list_confirm_action",
                "context": {"source": "python_list_menu", "item_id": "$item.id"},
                "confirm": {
                    "text": sdk.i18n.t("components.list.confirm.menu_prompt"),
                    "confirm_text": sdk.i18n.t("components.list.confirm.accept"),
                    "cancel_text": sdk.i18n.t("components.list.confirm.cancel"),
                },
            },
        }
    ],
    selected_items_action={
        "name": "components.list_confirm_action",
        "context": {"source": "python_list_selected"},
        "confirm": {
            "text": sdk.i18n.t("components.list.confirm.selected_prompt"),
            "confirm_text": sdk.i18n.t("components.list.confirm.accept"),
            "cancel_text": sdk.i18n.t("components.list.confirm.cancel"),
        },
    },
)

Data Source

The cross-client dataSource forms are:

Type Shape Usage
Inline {"type": "inline", "data": items} Static list seeded at render time or later replaced with direct property updates.
Store binding {"type": "binding", "data": bound.store(...)} Reads items from page/global store.
Data-model binding {"type": "binding", "data": bound.data(...)} Reads items from the current surface data model.

The web renderer also accepts remote http and websocket sources. The portable examples use inline and binding because they work on both clients.

Items are dictionaries. A stable id is recommended because selection is tracked by item key.

items = [
    {
        "id": "list-101",
        "title": "Onboarding checklist",
        "text": "Three tasks ready for review",
        "status": "active",
        "owner": "Runtime",
        "priority": "High",
        "icon": "ric.checkbox-circle-line",
        "icon_color": "#2563eb",
        "selectable": True,
        "show_badge": True,
    }
]

selectable on an item can be a boolean or a visibility-style rule. When selectable=True on the list, selectable row clicks toggle selection. Use item actions or an inline button when the same row also needs an explicit action.

Built-In Templates

template="text" renders each item from text, with optional icon and icon_color.

template="title_text" renders title and text, with optional icon and icon_color. The desktop renderer also reads a badges list for this template; do not rely on that key for a cross-client visual result.

template="custom" is set automatically when item_template is provided. Custom templates can render any normal component tree supported by the clients.

text_list = sdk.ui.List(
    "list_text",
    data_source={"type": "inline", "data": items},
    template="text",
    selectable=True,
    orientation="vertical",
    on_item_click={
        "name": "components.test_list_action_event",
        "context": {"op": "item_click", "source": "python_text"},
    },
    item_actions=item_actions,
    selected_items_action={
        "name": "components.test_list_action_event",
        "context": {"op": "selected", "source": "python_text"},
    },
    selected_items_action_label="Apply to selected",
)

title_text_list = sdk.ui.List(
    "list_title_text",
    data_source={"type": "inline", "data": items},
    template="title_text",
    selectable=True,
    orientation="horizontal",
    item_actions=item_actions,
)

Custom Item Template

item_template receives the current item. Use {{field}} placeholders in visible component props and $item.field in action contexts or visibility rules.

Inline show_if, hide_if, and required_permissions are evaluated on the cloned inline components. This allows badges, buttons, and sections inside a list item to appear only for matching item data.

badge = sdk.ui.Badge("item_status", "{{status}}", variant="secondary")
badge.set_show_if({
    "conditions": [
        {"left": "$item.show_badge", "op": "==", "right": True}
    ]
})

button = sdk.ui.Button(
    "item_open",
    "Open",
    action="components.test_list_action_event",
    params={"op": "inline_button", "item_id": "{{id}}"},
    variant="secondary",
    btnsize="sm",
)
button.set_show_if({
    "conditions": [
        {
            "left": bound.store(
                "/components_test/list/show_inline_buttons",
                scope="page",
                default=True,
            ),
            "op": "==",
            "right": True,
        },
        {"left": "$item.status", "op": "!=", "right": "locked"},
    ]
})

template = sdk.ui.Card(
    "item_card",
    [
        sdk.ui.Column(
            "item_content",
            [
                sdk.ui.Title("item_title", "{{title}}", level=4),
                sdk.ui.Text("item_owner", "Owner: {{owner}}"),
                sdk.ui.Text("item_text", "{{text}}"),
                sdk.ui.Row("item_meta", [badge, button]),
            ],
        )
    ],
    variant="outlined",
)

custom_list = sdk.ui.List(
    "list_custom",
    data_source={"type": "inline", "data": items},
    item_template=template,
    selectable=True,
    item_actions=item_actions,
)

Item And Selection Actions

item_actions render a per-item menu. Each action receives the explicit action.context after item placeholders are resolved. The renderer also adds:

{"item": item, "item_index": index}

selected_items_action is a single batch action. It is enabled when at least one selectable item is selected and receives:

{
    "selected_items": selected_items,
    "selected_count": len(selected_items),
    "selected_ids": [item["id"], ...],
}

Action entries support show_if, hide_if, and required_permissions. Rules can read $item.field.

When an item action navigates to a route, use nav and include type: nav in the context:

item_actions:
  - label: Open
    icon: ric.external-link-line
    action:
      name: nav
      context:
        type: nav
        path: "/module/item/$item.id/view"

path without type: nav is reserved for implicit data-model binding shapes and must not be used as the only key in a navigation context.

item_actions = [
    {
        "label": "Inspect",
        "icon": "ric.search-eye-line",
        "action": {
            "name": "components.test_list_action_event",
            "context": {"op": "inspect", "item_id": "$item.id"},
        },
    },
    {
        "label": "Promote pending",
        "icon": "ric.arrow-up-circle-line",
        "action": {
            "name": "components.test_list_action_event",
            "context": {"op": "promote_pending", "item_id": "$item.id"},
        },
        "show_if": {
            "conditions": [
                {"left": "$item.status", "op": "==", "right": "pending"}
            ]
        },
    },
    {
        "label": "Archive active",
        "icon": "ric.archive-line",
        "action": {
            "name": "components.test_list_action_event",
            "context": {"op": "archive_active", "item_id": "$item.id"},
        },
        "hide_if": {
            "conditions": [
                {"left": "$item.status", "op": "!=", "right": "active"}
            ]
        },
        "required_permissions": ["components.list.archive"],
    },
]

Bindings And Updates

Store-bound and data-model-bound examples use the same item format as the inline examples. In Python, use bound.store(...) for page/global store and bound.data(...) for the surface data model. In YAML, use explicit store binding objects and @data/... paths.

Direct updates can replace the complete dataSource or mutate the nested item list through dataSource.data when the corresponding capabilities are declared.

builder.set_store(
    "/components_test/list/store_items",
    items,
    scope="page",
)
builder.set_data(
    "/components_test/list_model",
    {"items": items},
)

store_list = sdk.ui.List(
    "list_store",
    data_source={
        "type": "binding",
        "data": bound.store(
            "/components_test/list/store_items",
            scope="page",
            default=[],
        ),
    },
    item_template=template,
)

data_list = sdk.ui.List(
    "list_data",
    data_source={
        "type": "binding",
        "data": bound.data(
            "/components_test/list_model/items",
            default=[],
        ),
    },
    item_template=template,
)

live_list = sdk.ui.List(
    "list_live",
    data_source={"type": "inline", "data": items},
    item_template=template,
)
live_list.allow(
    "dataSource.set",
    "dataSource.data.append",
    "dataSource.data.replace",
    "visible.set",
)

Runtime updates target the current surface:

surface_id = ctx["_surface_id"]

sdk.effects.ui_messages([
    {
        "stateUpdate": {
            "scope": "page",
            "values": {"/components_test/list/store_items": items},
        }
    },
    sdk.ui.Builder.build_data_model_update_payload(
        surface_id=surface_id,
        data={"components_test": {"list_model": {"items": items}}},
    ),
])

sdk.effects.ui_property_update(
    "list_live",
    "dataSource",
    {"type": "inline", "data": items},
    action="set",
    surface_id=surface_id,
)

sdk.effects.ui_collection_append(
    "list_live",
    "dataSource.data",
    new_item,
    surface_id=surface_id,
)

Visibility And Permissions

List supports the common component-level show_if, hide_if, and required_permissions properties. The demo also applies item-aware visibility inside item_template and inside item_actions.

list_component.set_show_if({
    "conditions": [
        {
            "left": bound.store(
                "/components_test/list/show",
                scope="page",
                default=True,
            ),
            "op": "==",
            "right": True,
        }
    ]
})
list_component.set_hide_if({
    "conditions": [
        {
            "left": bound.store(
                "/components_test/list/hide",
                scope="page",
                default=False,
            ),
            "op": "==",
            "right": True,
        }
    ]
})
list_component.set_required_permissions(["components.list.view"])

Screenshots

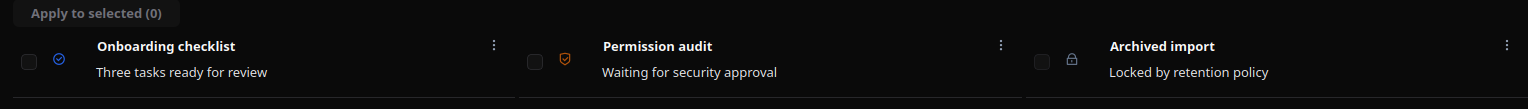

List on desktop

List on web
