Markdown

<- Back to Content Components

Markdown renders formatted text blocks from Markdown source. Use it for documentation fragments, release notes, rich helper content, lists, links, and fenced code blocks.

Python Contract¶

sdk.ui.Markdown(
    id: str,
    text: Any,
)

text accepts literal Markdown, store bindings, and data-model bindings from the constructor. When a bound text value changes at runtime, desktop and web update the rendered Markdown without requiring a full page render.

Supported Properties¶

Property	Type	Required	Python	YAML	Desktop	Web	Notes
`id`	`str`	yes	yes	yes	yes	yes	Stable component id
`text`	str or binding	yes	constructor / `text.set`	yes	yes	yes	Markdown source string; supports runtime binding updates
`style`	str	no	yes	yes	yes	yes	Inline style string applied to the rendered container
`content_style`	str	no	`set_property`	yes	yes	no	Desktop-only style applied to rendered Markdown/code children
`show_if`	rule	no	yes	yes	yes	yes	Generic visibility contract
`hide_if`	rule	no	yes	yes	yes	yes	Generic visibility contract
`required_permissions`	list[str]	no	yes	yes	yes	yes	Generic permission gate

Binding Paths¶

The component test page uses these paths:

Store: /components_test/markdown/text
Data model: /components_test/markdown_model/text
Visibility store: /components_test/visibility/markdown_show, /components_test/visibility/markdown_hide

Static Example¶

builder.add(
    sdk.ui.Markdown(
        "components_test_markdown_static",
        "### Static Markdown\n\n- Literal Markdown\n- Rendered rich text",
    )
)

Store Binding Example¶

from democrai.sdk.ui import bound

builder.add(
    sdk.ui.Markdown(
        "components_test_markdown_store",
        bound.store(
            "/components_test/markdown/text",
            scope="page",
            default="### Store Markdown\n\nContent follows page store.",
        ),
    )
)

- kind: Markdown
  id: components_test_markdown_yaml_store
  text:
    type: store
    scope: page
    path: /components_test/markdown/text
    default: "### Store Markdown\n\nContent follows page store."

Data Model Binding Example¶

builder.add(
    sdk.ui.Markdown(
        "components_test_markdown_data",
        bound.data(
            "/components_test/markdown_model/text",
            default="### Data Markdown\n\nContent follows the surface data model.",
        ),
    )
)

Runtime Property Update Example¶

builder.add(
    sdk.ui.Markdown(
        "components_test_markdown_live",
        "### Runtime Markdown\n\nDefault content.",
    )
)

builder.add(
    sdk.ui.Button(
        "components_test_markdown_set_alt_btn",
        "Set alternate",
        action="components.content_test_set",
        params={"component": "markdown", "state_key": "alternate"},
        variant="default",
    )
)

- kind: Markdown
  id: components_test_markdown_yaml_live
  text: |
    ### Runtime Markdown

    Default content.
  capabilities: [text.set]

- kind: Button
  id: components_test_markdown_yaml_set_alt_btn
  label: "Set alternate"
  variant: default
  action: components.content_test_set
  params: {component: markdown, state_key: alternate}

The action sends a plain Markdown string in the text property update. Direct property updates require the component to allow text.set; store and data-model binding updates do not require a capability declaration.

surface_id = str(ctx.get("_surface_id") or "main").strip() or "main"
return sdk.effects.respond(
    sdk.effects.ui_property_update(
        "components_test_markdown_live",
        "text",
        "### Updated Markdown\n\n- Data changed\n- Property updated",
        surface_id=surface_id,
    )
)

Visibility And Permissions Example¶

markdown = sdk.ui.Markdown(
    "components_test_markdown_show_if",
    "### show_if visible\n\nVisibility rule target.",
)
markdown.set_show_if({
    "conditions": [
        {
            "left": bound.store(
                "/components_test/visibility/markdown_show",
                scope="page",
                default=True,
            ),
            "op": "==",
            "right": True,
        }
    ]
})
builder.add(markdown)

gated = sdk.ui.Markdown(
    "components_test_markdown_required_permissions",
    "### required_permissions gate",
)
gated.set_required_permissions(["components.content.visibility"])
builder.add(gated)

- kind: Markdown
  id: components_test_markdown_yaml_show_if
  text: "### show_if visible"
  show_if:
    conditions:
      - left:
          type: store
          scope: page
          path: /components_test/visibility/markdown_show
          default: true
        op: "=="
        right: true

- kind: Markdown
  id: components_test_markdown_yaml_hide_if
  text: "### hide_if visible"
  hide_if:
    conditions:
      - left:
          type: store
          scope: page
          path: /components_test/visibility/markdown_hide
          default: false
        op: "=="
        right: true

- kind: Markdown
  id: components_test_markdown_yaml_required_permissions
  text: "### required_permissions gate"
  required_permissions: [components.content.visibility]

Use an action to update the store values observed by show_if and hide_if.

Rendered Output¶

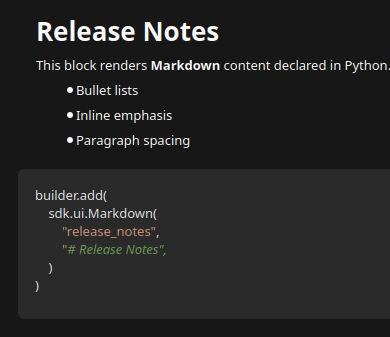

Desktop¶

Markdown desktop preview

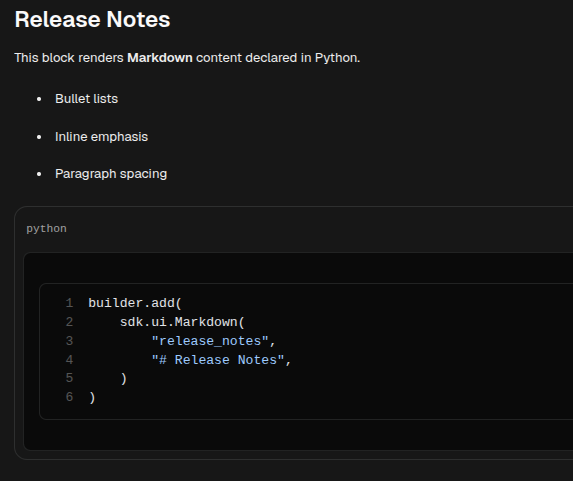

Web¶

Markdown web preview

Usage Guidance¶

Use Markdown when the content requires formatting that plain Text does not provide.
Bind text from the constructor when Markdown content follows store or data-model state; runtime binding updates refresh the rendered Markdown.
Declare text.set in YAML when direct property updates target the component.
Use show_if, hide_if, and required_permissions for visibility and authorization gates.
