Progress renders a numeric completion state against a maximum. It is the component to use for upload state, ingestion state, task completion, and similar scalar progress bars.

Python Contract¶

sdk.ui.Progress(
    id: str,
    value: int = 0,
    maximum: int = 100,
    label: str = "",
    show_label: bool = True,
)

SDK-side behavior from the constructor:

• value is registered as mutable through mutable_value("value"), so the capability contract includes value.set and value.append.
• maximum.set and label.set are explicitly enabled.
• visible.set and enabled.set are enabled through .interactive().
• show_label.set is not enabled by the SDK component.
• The constructor serializes the label argument as a literal string payload. For a bound label in Python, construct the component first and then call set_property("label", ...).

value.append exists because it comes from the generic mutable-scalar helper, but for Progress it is not a meaningful operation. Use value.set.

Supported Properties¶

Renderer Notes¶

Desktop:

• Renders a QFrame containing an optional QLabel and a QProgressBar.
• value updates animate the bar from the current value to the target value.
• maximum updates call setRange(0, maximum).
• label updates change only the text node.
• show_label is declared with SURFACE binding strategy, so store-bound changes trigger a surface re-render instead of an in-place property patch.

Web:

• Computes safeMaximum = Math.max(1, Number(maximum) || 100).
• Computes safeValue = clamp(value, 0, safeMaximum).
• Shows the label row only when show_label is truthy.
• The right-hand percentage label is derived client-side from value / maximum.

Cross-client consequence:

• If you change label, keep in mind that web also shows the computed percentage next to it.
• If you need to toggle show_label, prefer store binding rather than assuming a direct show_label.set patch contract.

Static Example¶

progress = sdk.ui.Progress(
    "upload_progress",
    value=68,
    maximum=100,
    label="Embedding ingestion",
)

- kind: Progress
  id: upload_progress
  value: 68
  maximum: 100
  label: Embedding ingestion

Rendered Output¶

Desktop rendering of the static example:

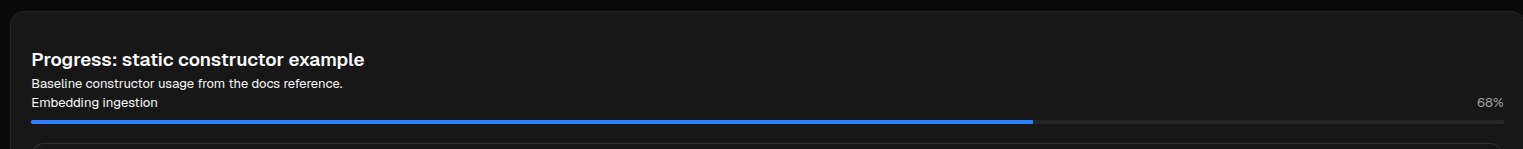

Web rendering of the same static example:

Store-Bound Example¶

Use bindings when progress state should be derived from page/global store values rather than patched directly.

from democrai.sdk.ui import bound

builder.set_store("/components_test/progress/value", 25, scope="page")
builder.set_store("/components_test/progress/maximum", 100, scope="page")
builder.set_store("/components_test/progress/label", "Queued", scope="page")
builder.set_store("/components_test/progress/show_label", True, scope="page")

progress = sdk.ui.Progress(
    "bound_progress",
    value=bound.store("/components_test/progress/value", scope="page", default=25),
    maximum=bound.store("/components_test/progress/maximum", scope="page", default=100),
    label="Queued",
    show_label=bound.store("/components_test/progress/show_label", scope="page", default=True),
)
progress.set_property(
    "label",
    bound.store("/components_test/progress/label", scope="page", default="Queued"),
)

- kind: Progress
  id: bound_progress
  value:
    type: store
    scope: page
    path: /components_test/progress/value
    default: 25
  maximum:
    type: store
    scope: page
    path: /components_test/progress/maximum
    default: 100
  label:
    type: store
    scope: page
    path: /components_test/progress/label
    default: Queued
  show_label:
    type: store
    scope: page
    path: /components_test/progress/show_label
    default: true

Action that drives the binding:

@action("components_test_progress_set_store")
async def components_test_progress_set_store(ctx: dict, session: dict, sdk) -> dict:
    del session
    return sdk.effects.respond(
        sdk.effects.ui_messages(
            [
                {
                    "stateUpdate": {
                        "scope": "page",
                        "values": {
                            "/components_test/progress/value": 64,
                            "/components_test/progress/maximum": 100,
                            "/components_test/progress/label": "Embedding ingestion",
                            "/components_test/progress/show_label": True,
                        },
                    }
                }
            ]
        )
    )

Runtime Property Update Example¶

Use direct property patches when the component instance itself is the source of truth and the mutable properties are enough.

progress = sdk.ui.Progress(
    "components_test_progress_runtime",
    value=10,
    maximum=120,
    label="Runtime patch target",
)

return sdk.effects.respond(
    sdk.effects.ui_property_update("components_test_progress_runtime", "value", 72),
    sdk.effects.ui_property_update("components_test_progress_runtime", "maximum", 120),
    sdk.effects.ui_property_update("components_test_progress_runtime", "label", "Runtime 72/120"),
)

Supported direct patches:

• value.set
• maximum.set
• label.set
• visible.set
• enabled.set

Not part of the direct patch contract:

• show_label.set

Practical Guidance¶

• Use direct property patches for frequent numeric progress changes.
• Use store binding when the same progress state drives more than one component or when show_label must react to state.
• Keep values in the same unit across clients. Both renderers assume value and maximum are on the same scale.
• Do not rely on values above maximum being preserved visually. Web clamps to maximum, and desktop constrains the bar range to the current maximum.
