<- Back to Charts Components

GitGraph renders a commit history as lane-based nodes connected by branch and merge edges. Use it for release flows, feature branch lifecycles, back-merges, deployment provenance, and other commit-style timelines.

Python Contract

sdk.ui.GitGraph(
    id: str,
    *,
    commits: list[dict[str, Any]] | None = None,
    edges: list[dict[str, Any]] | None = None,
    title: str = "",
    height: int = 360,
    lane_width: int = 80,
    row_height: int = 56,
    show_labels: bool = True,
    show_branch_names: bool = True,
    action: str | ActionSpec = "",
    params: dict[str, Any] | None = None,
)

height is normalized to at least 220. lane_width is normalized to at least 48. row_height is normalized to at least 34.

Supported Properties

Property Type Required Python YAML Desktop Web Notes
id str yes yes yes yes yes Stable component id
commits list[object] no yes yes yes yes Commit nodes in visual order
edges list[object] no yes yes yes yes Explicit branch and merge links
title str no yes yes yes yes Optional heading above the graph
height int no yes yes yes yes Minimum visible height
lane_width / laneWidth int no yes yes yes yes Horizontal spacing between lanes
row_height / rowHeight int no yes yes yes yes Vertical spacing between commits
show_labels / showLabels bool no yes yes yes yes Shows commit labels next to nodes
show_branch_names / showBranchNames bool no yes yes yes yes Shows lane names
action str or ActionSpec no yes yes yes yes Action called when a commit node is clicked
params dict no yes yes desktop merges into action payload accepted by component payload Use commit fields for cross-client click handling
style str no yes yes yes yes Apply layout styling on the surrounding container when possible
show_if rule no yes yes yes yes Generic visibility contract
hide_if rule no yes yes yes yes Generic visibility contract
required_permissions list[str] no yes yes yes yes Generic visibility contract

Commit Shape

Each commits entry can provide:

  • id: stable commit identifier
  • label: visible commit label
  • message: accepted as a label alias
  • branch: branch name used to derive a lane automatically
  • lane: explicit numeric lane index
  • laneName: visible lane label when lanes are assigned explicitly
  • color: explicit node and edge color

When lane is omitted, the component derives lanes from branch order. When lane is present, that numeric lane is used directly.

Edge Shape

Each edges entry can provide:

  • source: source commit id
  • target: target commit id
  • from: accepted as an alias for source
  • to: accepted as an alias for target

When edges is omitted or empty, both renderers fall back to linking each commit to the next commit in list order.

Click Actions

When action is set, clicking a commit emits these commit fields:

  • commitId
  • label
  • branch
  • lane
  • source with value git_graph

Desktop also merges params into the emitted payload. For cross-client handling, prefer using the commit fields above as the primary action input.

Action Confirmation

Use action.confirm to ask for confirmation before dispatching a commit click action. Confirmation text should use translation keys.

graph = sdk.ui.GitGraph(
    "gitgraph_confirm",
    title="Confirmable GitGraph",
    commits=[
        {"id": "c1", "label": "c1 Init", "branch": "main"},
        {"id": "c2", "label": "c2 Feature", "branch": "feature"},
    ],
    action={
        "name": "components.gitgraph_confirm_action",
        "context": {"source": "python_gitgraph"},
        "confirm": {
            "text": sdk.i18n.t("components.gitgraph.confirm.prompt"),
            "confirm_text": sdk.i18n.t("components.gitgraph.confirm.accept"),
            "cancel_text": sdk.i18n.t("components.gitgraph.confirm.cancel"),
        },
    },
    params={"graph_id": "gitgraph_confirm"},
)

Branch-Based Example

graph = sdk.ui.GitGraph(
    "feature_branch_flow",
    title="Feature branch with merge and release branch",
    commits=[
        {"id": "c1", "label": "a31f9e2  Init project scaffold", "branch": "main"},
        {"id": "c2", "label": "c9bbd51  Add auth guard", "branch": "main"},
        {"id": "c3", "label": "f8d77a0  Start feature/chat-stream", "branch": "feature/chat-stream"},
        {"id": "c4", "label": "98bbf4d  Improve composer UX", "branch": "feature/chat-stream"},
        {"id": "c5", "label": "a4e1f6b  Hotfix permission check", "branch": "main"},
        {"id": "c6", "label": "91dfe26  Merge feature/chat-stream", "branch": "main"},
        {"id": "c7", "label": "db1a002  Release v2.3.0", "branch": "release/2.3"},
        {"id": "c8", "label": "56c11f8  Patch telemetry tags", "branch": "release/2.3"},
        {"id": "c9", "label": "9ed10aa  Merge release into main", "branch": "main"},
    ],
    edges=[
        {"source": "c1", "target": "c2"},
        {"source": "c2", "target": "c3"},
        {"source": "c3", "target": "c4"},
        {"source": "c2", "target": "c5"},
        {"source": "c4", "target": "c6"},
        {"source": "c5", "target": "c6"},
        {"source": "c6", "target": "c7"},
        {"source": "c7", "target": "c8"},
        {"source": "c8", "target": "c9"},
        {"source": "c6", "target": "c9"},
    ],
    height=520,
    lane_width=90,
    row_height=58,
    show_branch_names=True,
    action="git_graph_demo_click",
    params={"example": "branch_flow"},
)

Desktop rendering:

GitGraph on desktop

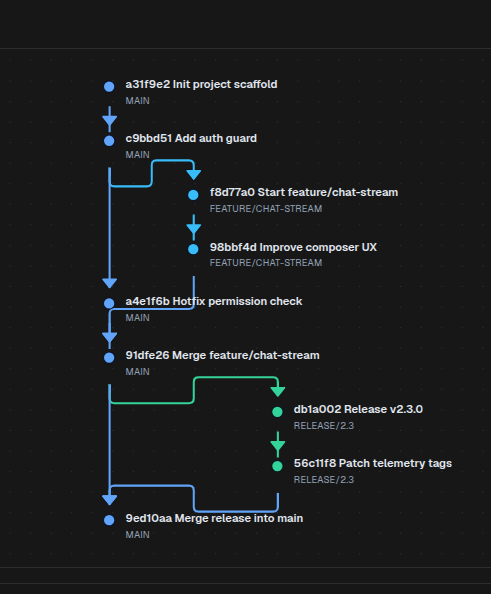

Web rendering:

GitGraph on web

Explicit-Lane Example

graph = sdk.ui.GitGraph(
    "release_stabilization_graph",
    title="Release stabilization graph",
    commits=[
        {"id": "r1", "label": "1f9c42b  Main baseline", "lane": 0, "laneName": "main"},
        {"id": "r2", "label": "4a2d55f  release/2.4 cut", "lane": 1, "laneName": "release/2.4"},
        {"id": "r3", "label": "60ae71d  QA fixes on release", "lane": 1, "laneName": "release/2.4"},
        {"id": "r4", "label": "99bf230  main receives hotfix", "lane": 0, "laneName": "main"},
        {"id": "r5", "label": "ab71502  Merge release -> main", "lane": 0, "laneName": "main"},
        {"id": "r6", "label": "d6e4410  Back-merge main -> develop", "lane": 2, "laneName": "develop"},
    ],
    edges=[
        {"source": "r1", "target": "r2"},
        {"source": "r2", "target": "r3"},
        {"source": "r1", "target": "r4"},
        {"source": "r3", "target": "r5"},
        {"source": "r4", "target": "r5"},
        {"source": "r5", "target": "r6"},
    ],
    height=380,
    lane_width=88,
    row_height=56,
    show_labels=True,
    show_branch_names=True,
    action="git_graph_demo_click",
    params={"example": "lane_flow"},
)

Binding And Runtime Updates

title, commits, and edges can be bound to the page store or to the surface data model. Direct runtime updates should target the same properties with propertyUpdate.

from democrai.sdk.ui import bound

graph = sdk.ui.GitGraph("components_test_gitgraph_store", height=320)
graph.set_property(
    "title",
    bound.store("/components_test/gitgraph/title", scope="page", default="Feature branch flow"),
)
graph.set_property(
    "commits",
    bound.store("/components_test/gitgraph/commits", scope="page", default=[]),
)
graph.set_property(
    "edges",
    bound.store("/components_test/gitgraph/edges", scope="page", default=[]),
)

data_graph = sdk.ui.GitGraph("components_test_gitgraph_data", height=320)
data_graph.set_property(
    "commits",
    bound.data("/components_test/gitgraph_model/commits", default=[]),
)

live_graph = sdk.ui.GitGraph(
    "components_test_gitgraph_live",
    title="Feature branch flow",
    commits=[],
    edges=[],
    height=320,
).allow("title.set", "commits.set", "edges.set")

Visibility And Permissions

show_if and hide_if are evaluated at the first render and when their bound values change. Visibility rules use mode: "AND" by default; declare mode: "OR" when any condition can make the rule pass. required_permissions gates the component on the current user permissions; super and admin roles bypass the permission list.

from democrai.sdk.ui import bound

graph = sdk.ui.GitGraph(
    "components_test_gitgraph_show_if",
    title="show_if visible",
    commits=[],
    edges=[],
    height=300,
).set_show_if({
    "mode": "AND",
    "conditions": [{
        "left": bound.store(
            "/components_test/visibility/gitgraph_show",
            scope="page",
            default=True,
        ),
        "op": "==",
        "right": True,
    }]
})

hidden_graph = sdk.ui.GitGraph(
    "components_test_gitgraph_hide_if",
    title="hide_if not hidden",
    commits=[],
    edges=[],
    height=300,
).set_hide_if({
    "mode": "AND",
    "conditions": [{
        "left": bound.store(
            "/components_test/visibility/gitgraph_hide",
            scope="page",
            default=False,
        ),
        "op": "==",
        "right": True,
    }]
})

permission_graph = sdk.ui.GitGraph(
    "components_test_gitgraph_required_permissions",
    title="required_permissions gate",
    commits=[],
    edges=[],
    height=300,
).set_required_permissions(["components.diagram.visibility"])

Renderer Behavior

Desktop:

  • Supports zoom and pan inside the graph viewport.
  • Draws lane headers from branch-derived lanes or explicit laneName values.
  • Merges params into the action payload on commit click.

Web:

  • Renders the graph with React Flow and fits the full graph into the available viewport.
  • Draws branch names inside each commit node rather than as a separate lane header row.
  • Emits commit click actions without merging params.

Usage Guidance

  • Use branch when the graph can derive lanes directly from branch names in commit order.
  • Use explicit lane and laneName when lane placement must stay stable across filtered or partial histories.
  • Keep commits ordered from oldest to newest so fallback edges and row placement stay predictable.
  • Use explicit edges for merges and branch jumps instead of relying on sequential fallback links.
  • Attach an action when commit clicks should open details, navigate, or surface metadata for the selected commit.
